250Nm3 Large Capacity Ammonia Dissociation Unit With Remote Monitor
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | KERONG GAS |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | एएनएच, एनएचपी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 पीसी |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | लकड़ी का बक्सा |
| प्रसव के समय: | 8 सप्ताह |
| भुगतान शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति वर्ष 1000pcs |
|
विस्तार जानकारी |
|||
| नाम: | अमोनिया पृथक्करण इकाई | उत्प्रेरक: | निकल उत्प्रेरक |
|---|---|---|---|
| ओसांक: | -70 ℃ | सामग्री: | स्टेनलेस स्टील या कार्बन स्टील |
| क्षमता: | 5Nm3/घंटा~250Nm3/घंटा | दबाव: | 0.5बार या अधिक |
| प्रमुखता देना: | large capacity ammonia cracker unit,ammonia dissociation unit with remote monitor,250Nm3 ammonia cracker with warranty |
||
उत्पाद विवरण

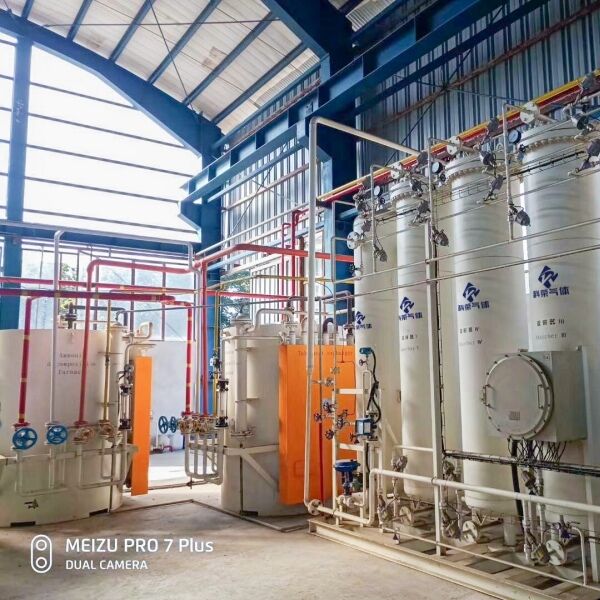

250Nm3 Large Capacity Ammonia Dissociation Unit With Remote Monitor
Product description
Our 250Nm³ Large Capacity Ammonia Dissociation Unit with Remote Monitor is designed for high-volume industrial atmosphere generation in heat treatment, brazing, annealing, and metallurgical applications. Utilizing advanced thermal dissociation technology, the unit efficiently converts ammonia into a hydrogen-nitrogen protective gas mixture with stable composition and flow. With a production capacity of 250Nm³/h, it supports large-scale continuous operations. The integrated remote monitoring system enables real-time tracking of temperature, gas production, operating status, and alarms, improving operational control and maintenance efficiency. Built with durable, heat-resistant materials and high-performance insulation, this fully automatic unit delivers reliable performance, energy efficiency, long service life, and reduced operating costs.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
