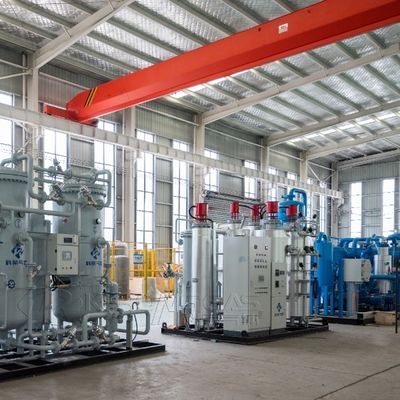

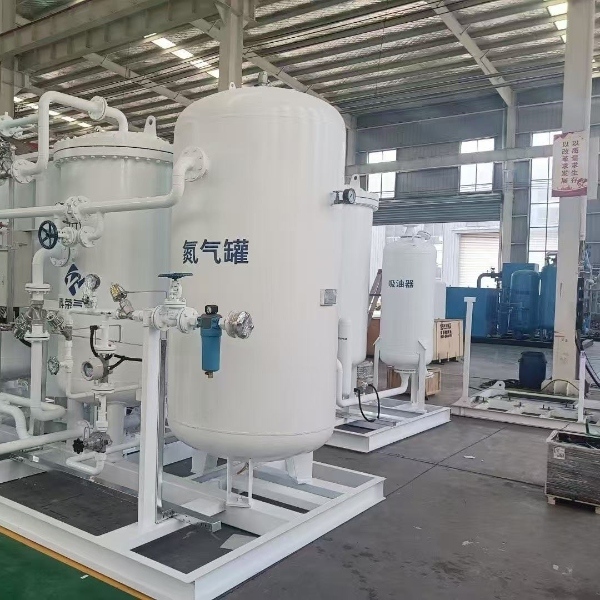

Low Emission Onsite Nitrogen Air Separation Unit For Tungsten Powder Furnace
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | KERONG GAS |
| प्रमाणन: | ISO9001, CE, ASME |
| मॉडल संख्या: | KRN |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 पीसी |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | लकड़ी का बक्सा |
| प्रसव के समय: | 8 सप्ताह |
| भुगतान शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति वर्ष 1000pcs |
|
विस्तार जानकारी |
|||
| नाम: | नाइट्रोजन वायु पृथक्करण इकाई | पवित्रता: | 90%~ 99.9999% |
|---|---|---|---|
| ओसांक: | -45 ℃ या अधिक | सामग्री: | स्टेनलेस स्टील या कार्बन स्टील |
| क्षमता: | 5nm3/hr ~ 5500nm3/hr | दबाव: | एडजस्टेबल |
| प्रमुखता देना: | PSA nitrogen generator for tungsten furnace,low emission nitrogen separation unit,onsite nitrogen gas generator |
||
उत्पाद विवरण
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Low Emission Onsite Nitrogen Air Separation Unit is designed to provide high-purity nitrogen (up to 99.9995%) directly to tungsten powder furnaces, ensuring oxidation-free processing and consistent material quality. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air efficiently while minimizing energy consumption and emissions. The compact, skid-mounted system integrates air compression, drying, filtration, and control units for easy installation, automatic operation, and low maintenance. Engineered for industrial reliability and environmental compliance, it delivers a continuous, cost-effective, and eco-friendly nitrogen supply, supporting safe and efficient tungsten powder production processes.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
